CNC turning machines help manufacturers produce accurate components with repeatable machining cycles. Conventional CNC lathes work well for many standard turning applications, especially when parts have larger diameters or relatively simple geometries.

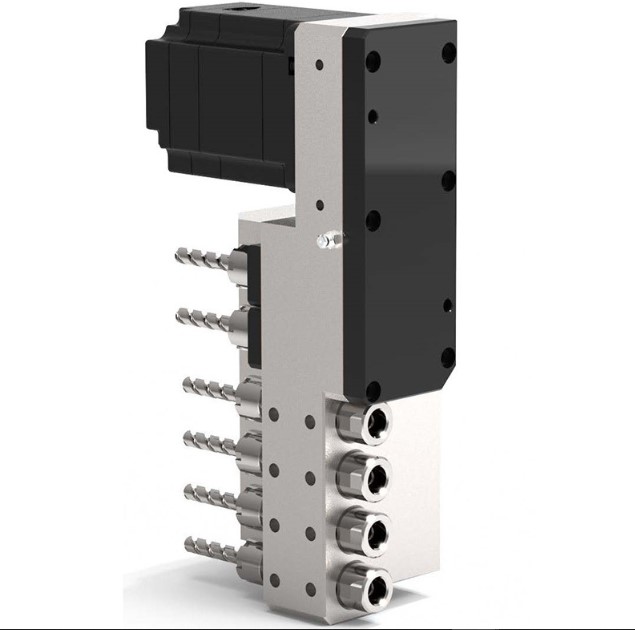

A swiss type CNC lathe takes a different approach to workpiece support and machining. Instead of holding the material only at the chuck area, the Swiss design moves the bar through a guide bushing while the cutting tools work close to the support point. This configuration makes the machine particularly useful for small, slender, and precision components.
How Conventional CNC Lathes Hold The Workpiece
A conventional CNC lathe typically holds the workpiece in a chuck or collet. The material extends outward from the holding device while the cutting tools remove material along the exposed section.
This arrangement works well for many components with sufficient rigidity. Larger shafts, bushings, discs, and other relatively short parts often suit this machining method.
The setup becomes more challenging when the component has a small diameter and a long length. Cutting forces may cause the unsupported material to deflect or vibrate.
How Swiss-Type Machines Support The Material
Swiss-type machining uses a sliding-headstock arrangement combined with a guide bushing. The bar moves through the guide bushing as the headstock positions the material near the cutting tools.
This support keeps the machining area close to the guide bushing. The shorter unsupported section helps control deflection during cutting.
The design offers particular advantages when manufacturers produce:
- Long and slender components
- Small-diameter shafts
- Precision pins
- Medical components
- Electronic connectors
- Miniature fasteners
- Fine threaded parts
The Main Difference In Workpiece Movement
The movement of the workpiece provides one of the clearest differences between the two machine types.
On a conventional CNC lathe, the workpiece usually rotates in a fixed position while the cutting tool travels along the part.
A Swiss-type machine moves the headstock and bar along the Z-axis while maintaining support through the guide bushing. The tools remain positioned close to the cutting area.
This approach changes how the machine handles slender components and allows manufacturers to maintain better control over the material during machining.
Accuracy For Small Components
Small components often require tight dimensional control. Even a small amount of material movement can affect the final dimensions.
Swiss-type machining helps address this issue through close workpiece support. Reduced deflection can contribute to more consistent machining when manufacturers work with slender materials.
Conventional CNC lathes can also achieve high accuracy, particularly with rigid workpieces and appropriate setups. The difference becomes more noticeable when part geometry creates greater deflection risk.
Difference In Machining Complexity
Conventional CNC lathes can handle turning, facing, boring, threading, and grooving effectively. Advanced models may also include live tooling and additional axes.
Swiss-type machines often focus on combining several operations within a compact machining process. Depending on the configuration, they may support turning, drilling, threading, milling, cross drilling, and other features.
This capability reduces the need to transfer small components between separate machines.
Live Tooling And Multi-Axis Capabilities
Modern CNC technology allows both machine categories to offer advanced tooling options. However, Swiss-type machines frequently use multi-axis configurations designed for complex small-part manufacturing.
Live tooling allows rotating cutters to perform operations that standard turning tools cannot handle. Manufacturers can use these tools for slots, flats, cross holes, and other milled features.
An advanced multi-axis setup can coordinate several tools and spindles during one production cycle.
Production Efficiency
Machine design also affects production efficiency. Conventional CNC lathes may require additional setups when a component needs machining on several surfaces.
A Swiss-type machine can complete more features during one setup when its tooling and spindle configuration match the component.
Fewer setups can reduce handling time and help maintain consistent positioning between machining operations.
Secondary Operations
Secondary machining adds handling and setup requirements to a production process. Manufacturers may need to move partially completed components between turning, drilling, milling, and finishing equipment.
Swiss-type machining can reduce some of these requirements by combining multiple processes in one cycle.
This approach works particularly well for components that contain numerous features along a small diameter or slender profile.
Material Size And Application
Conventional CNC lathes generally provide greater flexibility for larger workpieces. Their chuck-based design suits a broad range of component sizes and shapes.
Swiss-type machines focus more heavily on smaller bar stock and precision components. Manufacturers should therefore consider the diameter and overall geometry before selecting either machine type.
The best choice depends on the component rather than the machine category alone.
Tool Management Differences
Tool requirements also vary according to the component and machine configuration.
A conventional CNC lathe may use a turret containing several turning tools and additional tooling. Swiss-type machines can combine multiple tool positions with live tooling and auxiliary spindle capabilities.
Manufacturers should calculate the complete tool requirement before choosing equipment. A complex small component may need several tools to complete all required features efficiently.
Automation Potential
Both conventional and Swiss-type CNC lathes can incorporate automation. Automatic bar feeders, part collectors, tool monitoring, and other systems can reduce manual intervention.
Swiss-type machines have a strong connection with automated small-part production because they often process bar stock continuously.
This makes them attractive for manufacturers producing large quantities of small components with consistent specifications.
Which Machine Fits Your Production Needs?
The right choice depends on several production factors. Manufacturers should compare the part geometry with the machine’s capabilities rather than assuming one technology works for every application.
A conventional CNC lathe may provide a better fit when the parts have:
- Larger diameters
- Shorter profiles
- Straightforward turning requirements
- Lower feature density
Swiss-type machining may offer stronger advantages when components involve:
- Small diameters
- Long slender profiles
- Tight tolerances
- Multiple machining operations
- High production volumes
- Complex features
How JSWAY Fits Into Swiss-Type Machining
JSWAY provides CNC machining solutions designed for precision manufacturing applications. Its Swiss-type machine options can support manufacturers that need efficient machining for small and complex components.
Manufacturers should review the machine’s axis configuration, spindle capabilities, tooling capacity, guide bushing system, and automation options against their actual production requirements.
Why The Difference Matters
Understanding the structural difference between these machine types helps manufacturers avoid selecting equipment based only on general CNC specifications.
The conventional CNC lathe offers broad turning capability and works well across many component sizes. Swiss-type technology adds close workpiece support and advanced machining capabilities that suit demanding small-part applications.
JSWAY emphasizes precision-oriented CNC solutions that help manufacturers match machine capabilities with specific component requirements.
Final Thoughts
The main difference between Swiss-type and conventional CNC lathes comes down to workpiece support, movement, and the type of components each machine handles most effectively.
Conventional CNC lathes remain valuable for many standard turning applications. Swiss-type machines provide distinct advantages for small, slender, complex, and high-precision components that benefit from close material support and multi-operation machining.
Manufacturers can make a better equipment decision by examining component dimensions, tolerances, material, machining operations, production volume, and automation needs before choosing a machine.
