A Multi Pair Cable is a type of communication and control cable that contains multiple pairs of insulated conductors bundled together within a single protective outer jacket. Each pair is typically twisted to reduce electrical interference and maintain signal quality during transmission. These cables are widely used in industrial automation, telecommunications, data transmission, security systems, and instrumentation applications where multiple signals need to be transmitted efficiently through one cable.

By combining several wire pairs into a single cable, multi pair cables simplify installations, reduce cable clutter, and improve overall system organization. Their versatility and reliable performance make them an essential component in many modern electrical and communication systems.

Understanding the Structure of a Multi Pair Cable

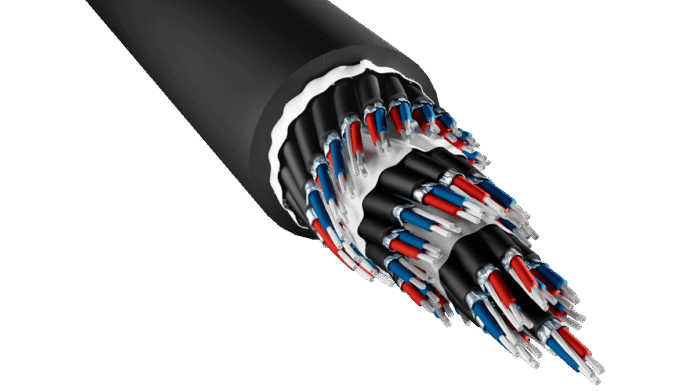

A multi pair cable consists of several twisted wire pairs enclosed within one outer sheath. Each pair is individually insulated and often color-coded to simplify identification during installation and maintenance.

The typical construction includes:

• Copper conductors for excellent conductivity
• Individual insulation for each conductor
• Twisted wire pairs to reduce interference
• Optional shielding for additional protection
• Protective outer jacket for mechanical durability

Depending on the application, the cable may contain anywhere from two pairs to hundreds of pairs.

How Does a Multi Pair Cable Work?

Each twisted pair carries electrical signals independently while minimizing electromagnetic interference (EMI). The twisting technique helps cancel out external electrical noise, allowing signals to travel with greater accuracy and stability.

When multiple signal paths are required, a multi pair cable allows all of them to be routed through one organized cable instead of installing numerous individual cables. This improves both efficiency and cable management.

Key Features of Multi Pair Cable

Multi pair cables are designed to provide reliable performance in demanding environments. Some of their key features include:

• Multiple twisted conductor pairs
• Excellent signal integrity
• Reduced electromagnetic interference
• Compact cable design
• Flexible installation
• Durable insulation materials
• Optional overall or individual shielding
• Long service life

These characteristics make them suitable for a wide variety of industrial and commercial applications.

Common Uses in Industrial Automation

Industrial automation systems rely heavily on accurate communication between sensors, controllers, and machinery. Multi pair cables help transmit multiple control signals while reducing installation complexity.

Typical automation applications include:

• Programmable logic controllers (PLCs)
• Control panels
• Sensors
• Actuators
• Industrial robots
• Production machinery
• Conveyor systems

Using one multi pair cable instead of several individual cables improves organization and simplifies maintenance.

Telecommunications Applications

One of the most common applications for multi pair cable is in telecommunications networks. These cables efficiently carry voice and communication signals between equipment.

They are widely used in:

• Telephone systems
• PBX installations
• Communication cabinets
• Building communication networks
• Internal telephone wiring
• Voice communication systems

Their ability to transmit multiple communication channels through one cable makes them highly practical.

Instrumentation Systems

Instrumentation systems require accurate signal transmission between measuring devices and control equipment. Multi pair cables provide stable performance while protecting sensitive signals from interference.

They are commonly used for connecting:

• Pressure transmitters
• Temperature sensors
• Flow meters
• Level sensors
• Monitoring equipment
• Industrial analyzers

Reliable signal quality helps ensure precise monitoring and control.

Security and Surveillance Systems

Security installations often require multiple signal connections throughout a building or facility. Multi pair cables simplify these installations by carrying numerous control and communication signals within one cable.

Common applications include:

• Access control systems
• Alarm systems
• CCTV control equipment
• Intercom systems
• Building security networks

Organized cabling also makes future maintenance much easier.

Audio and Broadcasting Equipment

Professional audio systems require clean signal transmission with minimal interference. Multi pair cables are frequently used in broadcasting and sound installations where multiple audio channels must be connected.

Typical uses include:

• Recording studios
• Broadcasting stations
• Public address systems
• Live event sound systems
• Audio mixing consoles

Twisted pairs help reduce noise and maintain audio quality.

Data Transmission Systems

Many industrial and commercial data communication systems use multi pair cables to transfer information between network devices.

Applications include:

• Data acquisition systems
• Monitoring equipment
• Building automation
• Industrial communication networks
• Remote monitoring systems

These cables help ensure stable and reliable data transfer over long distances.

Benefits of Using Multi Pair Cable

Choosing a multi pair cable offers several practical advantages for installers and system designers.

Some of the primary benefits include:

• Reduced installation time
• Lower material costs
• Better cable organization
• Simplified maintenance
• Improved signal quality
• Reduced electromagnetic interference
• Space-saving cable management
• Increased system reliability

These benefits make multi pair cables a preferred choice for complex wiring projects.

Factors to Consider When Choosing a Multi Pair Cable

Selecting the right cable depends on the specific application and operating environment. Important factors include:

• Number of conductor pairs
• Conductor size
• Shielding requirements
• Operating voltage
• Environmental conditions
• Temperature range
• Flexibility requirements
• Installation location

Choosing the correct specifications helps ensure long-term performance and system reliability.

Conclusion

A Multi Pair Cable is an efficient and reliable solution for transmitting multiple control, communication, and data signals through a single cable. Its twisted pair construction helps minimize interference while simplifying installation and reducing cable clutter. Widely used in industrial automation, telecommunications, instrumentation, security systems, broadcasting, and data transmission, multi pair cables offer excellent performance, durability, and flexibility. By selecting the right cable for the intended application, businesses can improve system organization, enhance signal reliability, and support efficient operation across a wide range of industries.
